Car Parking Shades Engineered for Vehicle Protection in Punjab
GM Tensile Concepts designs, fabricates, and installs cantilever and modular car parking shade structures across Lahore and Punjab.
Our column-free cantilever frames protect private and commercial vehicles from intense solar UV rays, paint oxidation, and harsh weather without obstructing parking maneuvers.
Engineered for Safe Vehicle Clearance
Cantilever shade systems place all structural posts at the rear, eliminating front post obstructions that cause accidental car door collisions and tight driveway maneuvers.
Our engineering calculates bending moments, entry clearances (2.4m – 3.2m), and deep anchor footings to ensure long-term stability under severe Punjab storm conditions.
Cantilever Moment Engineering
Structural steel arm sections and gusset plates are calculated to resist bending moments and prevent front-edge deflection.
Clear Headroom 2.4m – 3.2m
Engineered with standard entry clearance heights easily accommodating SUVs, 4x4s, and commercial vans without obstruction.
Vehicle Turning Radiuses
Column placement is aligned with driveway circulation to ensure easy parking maneuvers and full car door opening clearance.
Reinforced Anchor Foundations
Heavy-duty foundation cages and anchor bolts embedded in high-grade concrete footings calculated to withstand heavy wind gusts.
Where Our Parking Shades Are Installed
From private residential villas to high-traffic commercial and hospital parking compounds across Punjab.

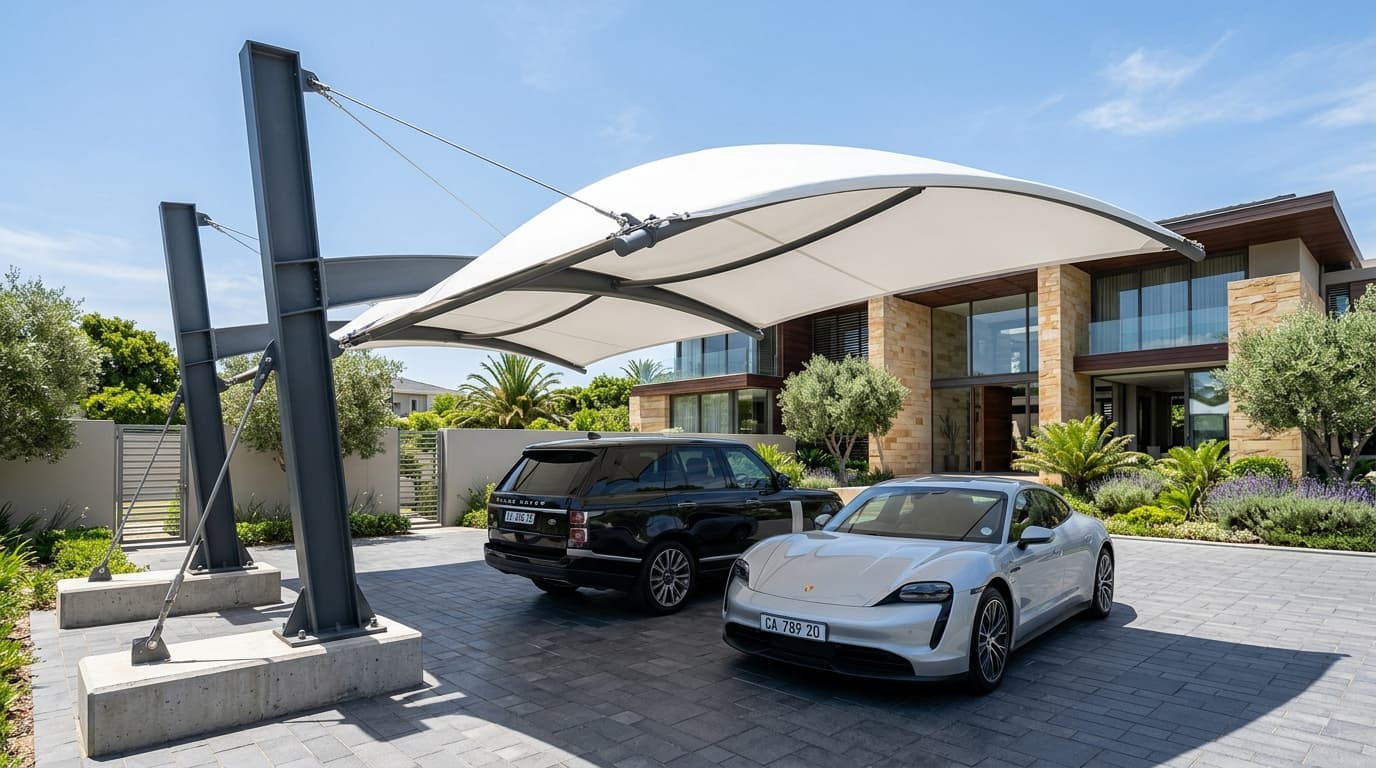

Residential Villas & Bungalows
Single and double cantilever shade bays providing private vehicle protection with modern architectural styling.

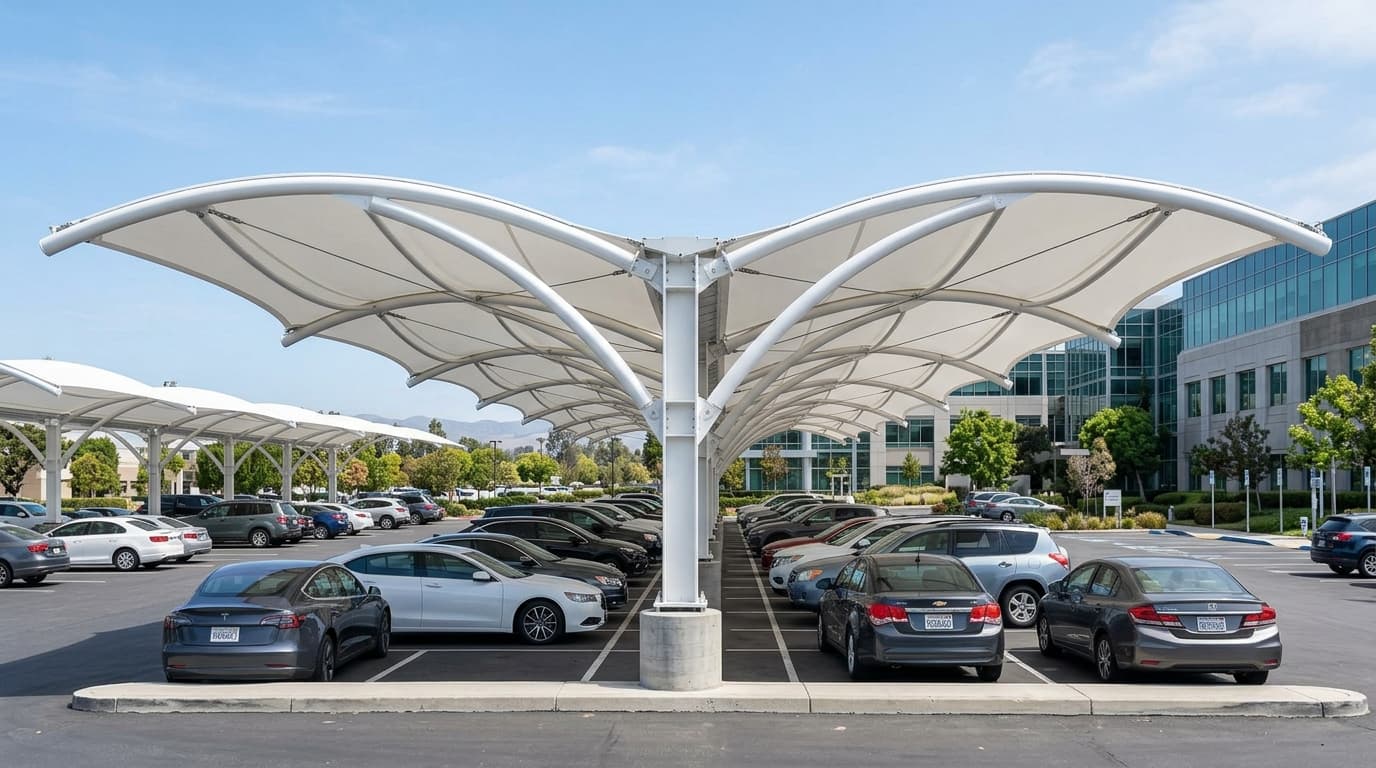

Corporate & Commercial Plazas
Multi-bay continuous parking systems providing shaded spaces for executive fleets, staff, and visitors.

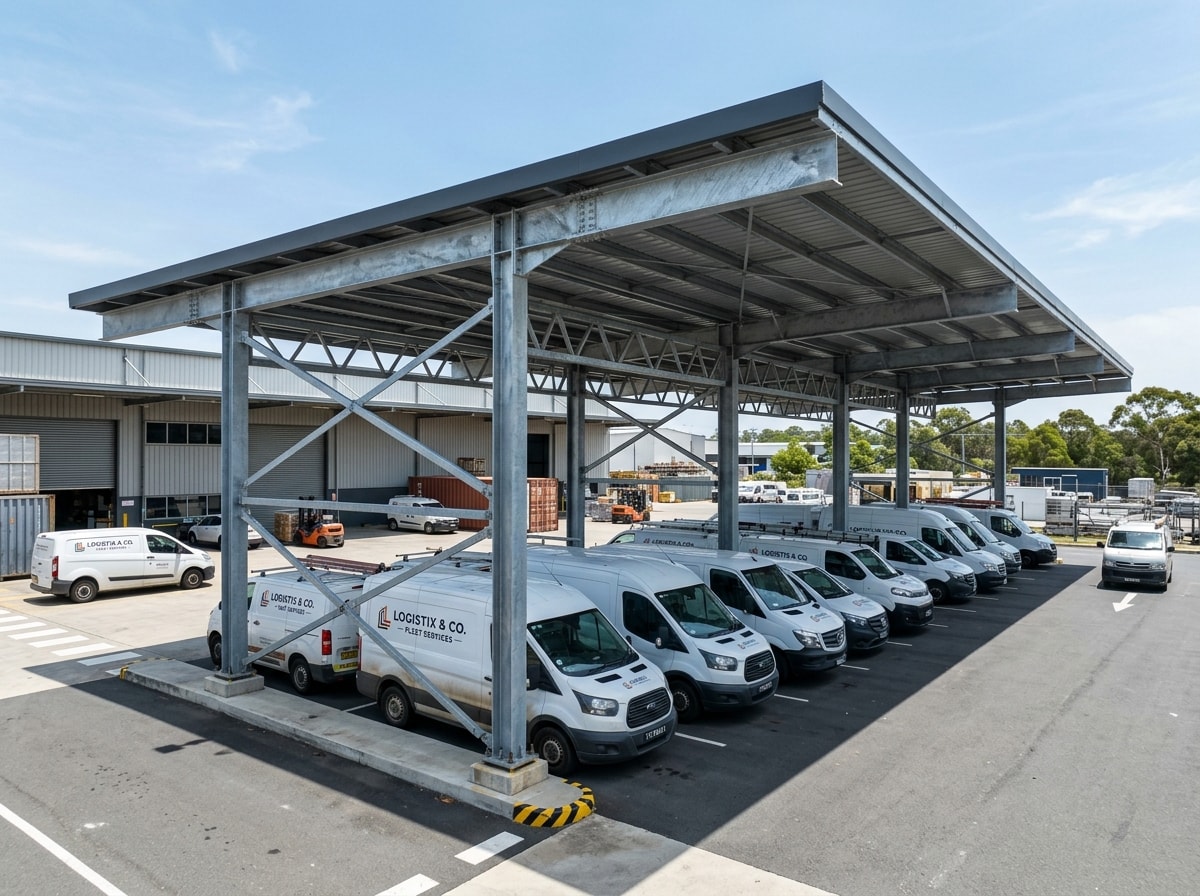

Industrial & Fleet Compounds
Heavy-duty structural steel parking sheds engineered for commercial transport trucks and factory employee vehicles.
Hospitals & Healthcare Facilities
Large-capacity parking shades keeping patient, ambulance, and medical staff vehicles protected around the clock.
Shopping Malls & Retail Centers
Durable customer parking canopies improving visitor comfort and shopping experience during hot summer days.
Schools & Educational Campuses
Heavy-duty bus and car parking canopies designed for high vehicle turnover and wide turning radiuses.
Parking Shade Structural Configurations
We fabricate a range of structural configurations suited to single-vehicle residential driveways or extensive commercial parking lots.
Single Cantilever Shade
Posts positioned strictly at the rear with sweeping cantilever arms, eliminating front columns to prevent car door collisions and ease vehicle entry.
Double Cantilever (Butterfly)
Central structural columns supporting cantilever arms on both sides, creating dual-row parking coverage for commercial plazas and corporate lots.

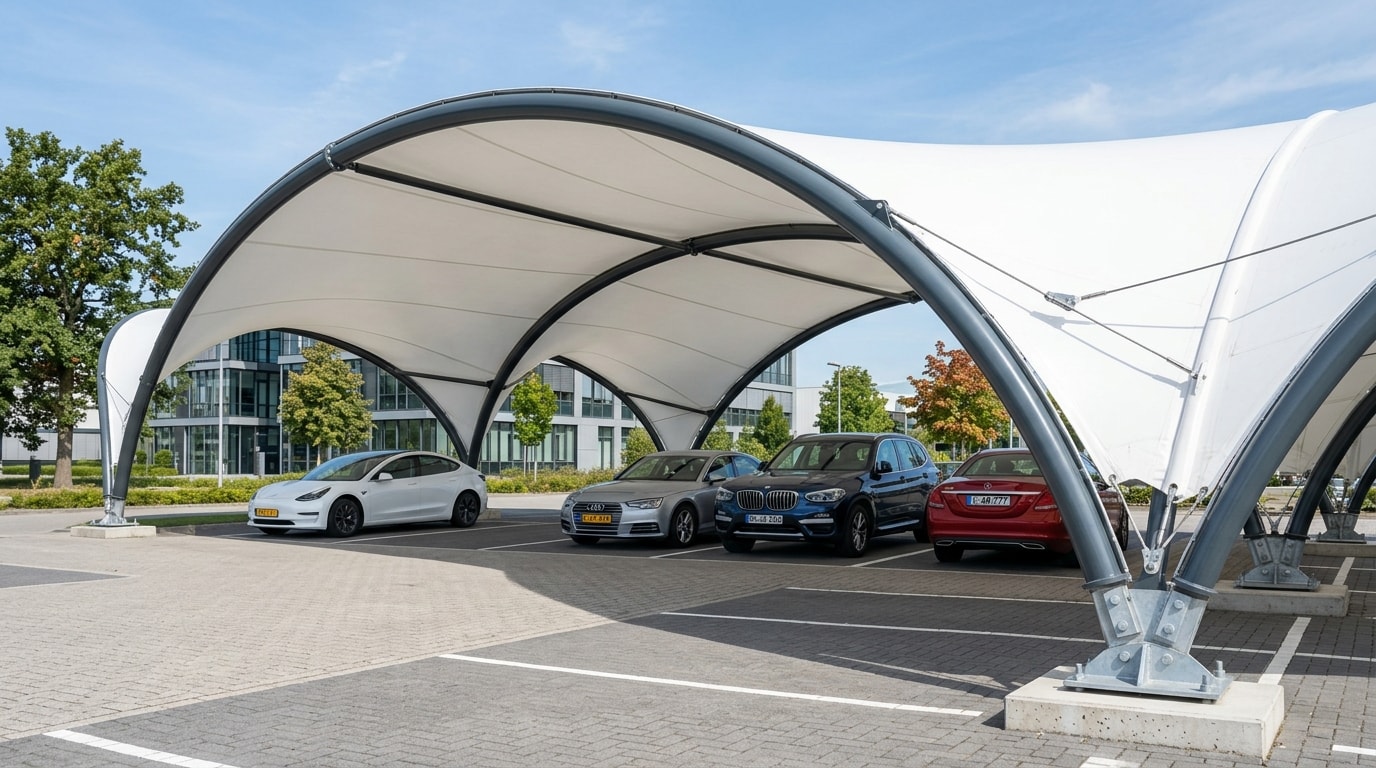

Arch & Curved Frame
Gracefully curved tubular steel profiles providing high clearance, aesthetic symmetry, and effective rainwater runoff.

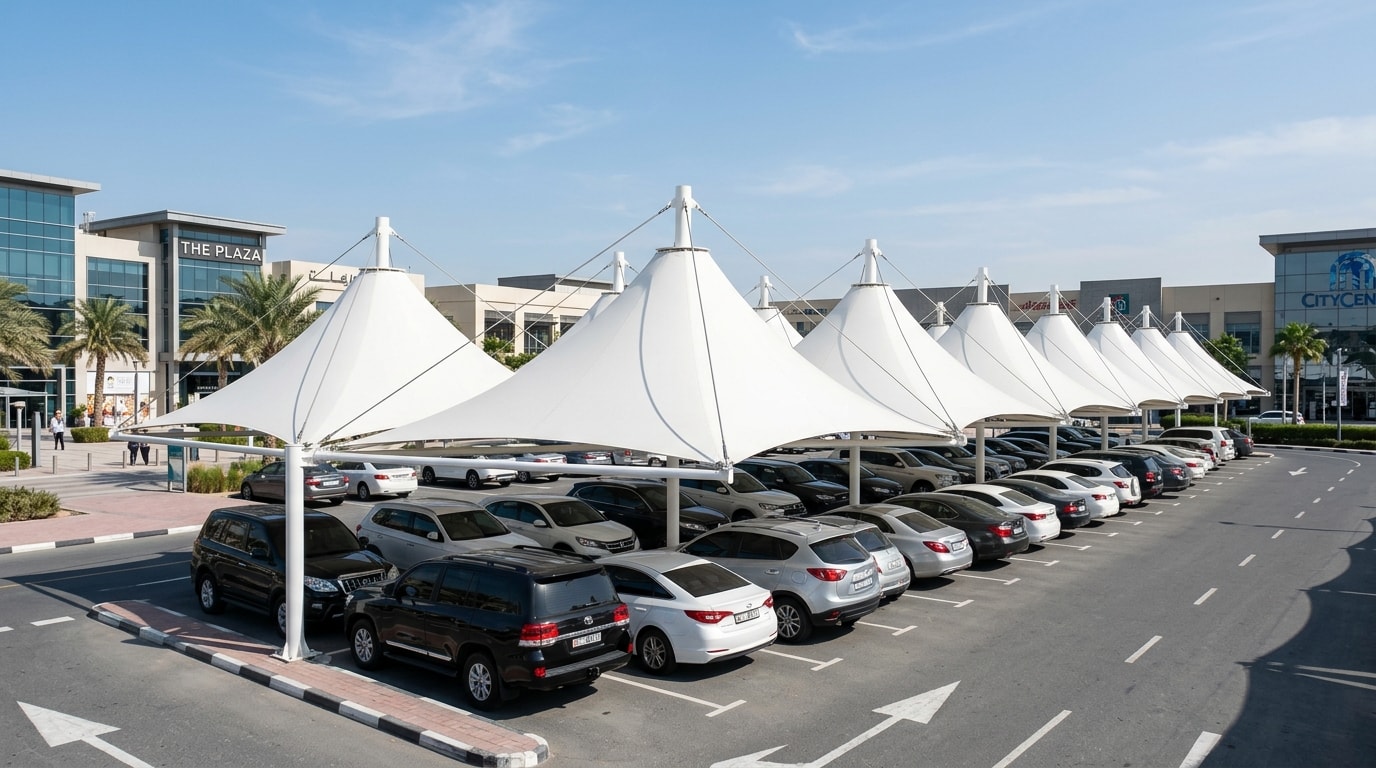

Conical & Pyramid Modular
Square modular bays with central peaks or pyramids, suited for multi-bay continuous parking lots and institutional campuses.
Parking Shade Execution Workflow
From driveway laser measurement to on-site cantilever frame erection, our process ensures safe execution.
Site Assessment
On-site laser measurement of driveway boundaries, vehicle turning space, and foundation readiness across Punjab.
Design & Planning
Calculating cantilever span, vehicle clearances, wind load resistance, and tailored steel connection drawings.
Fabrication
Precision cutting of steel pipe sections, gusset welding, protective priming, and fabric panel preparation in Lahore.
Installation
Base plate anchoring, cantilever frame erection, fabric tensioning, and quality check by our Punjab installation crew.
Project-Dependent Material Selection
Shade fabric densities, tubular steel pipe gauges, gusset plate dimensions, and foundation depths are selected project-by-project based on vehicle count, cantilever span, and wind conditions.
HDPE & PVC Shade Net
High UV-blocking architectural fabrics reducing car cabin temperatures and preventing paint fading.
Heavy-Gauge Steel Pipe
Heavy circular hollow sections treated with multi-coat anti-rust industrial primers and finishes.
Reinforced Gusset Plates
Thick welded structural gussets engineered to resist cantilever moment deflection.
Heavy Anchor Bolt Cages
Deep concrete footings with heavy anchor bolts designed to resist overturning forces.
Six Practical Strengths We Stand By
5 Years Field Experience
Specialized fabrication of cantilever, arch, and modular vehicle shade systems for residences and commercial sites.
In-House Lahore Setup
Direct workshop control over steel pipe cutting, gusset welding, and fabric sewing ensures structural reliability.
Free On-Site Measurements
We visit your driveway or commercial compound anywhere in Punjab without obligation to take exact measurements.
Project-Specific Engineering
Arm lengths, post wall thicknesses, and anchor depths are sized specifically for site dimensions and wind exposure.
Punjab-Wide Service Reach
Full engineering, fabrication, and installation support across Lahore, Faisalabad, Rawalpindi, Multan, and other cities.
Direct 24/7 Availability
Direct phone and WhatsApp technical consultation for residential and commercial vehicle shade inquiries.
Serving Car Parking Shade Projects Across Punjab
From Lahore, our engineering team provides on-site measurement, design planning, and professional installation support across Punjab:
Free on-site measurements and architectural consultations available for commercial and residential sites across Punjab.
Car Parking Shade FAQs
Practical answers regarding cantilever design advantages, vehicle heat protection, customization for irregular driveways, and quotes in Punjab.
Our structural engineering team is available 24/7 for phone & WhatsApp consultations.
Ask on WhatsApp →We fabricate single cantilever, double cantilever (butterfly), arch-type, pyramid, conical, and continuous multi-bay parking shades. Cantilever designs are most popular because they place support columns at the rear, eliminating front posts and preventing accidental car door collisions.
Planning a Car Parking Shade System in Punjab?
Schedule a free on-site survey anywhere in Punjab. Our team will inspect your driveway or parking lot, take exact measurements, and provide a clear quotation.
