Tensile Structures Engineered for Architectural Shade Across Punjab
GM Tensile Concepts delivers custom architectural tensile membrane structures from Lahore for commercial, institutional, and residential spaces across Punjab.
Combining 3D form-finding engineering with in-house steel fabrication, we create column-free, lightweight shade systems calculated for local wind forces and extreme summer temperatures.
Engineered for Double-Curvature Tension
Tensile structures rely on anticlastic curvature and calibrated pre-stressing to resist heavy wind gusts, prevent rainwater pooling, and eliminate fabric flutter.
Our Lahore fabrication facility pairs 3D form-finding software with heavy-gauge steel masts and perimeter stainless cables for long-term structural durability.
Double-Curvature Form Finding
Anticlastic saddle and conical curvature guarantees uniform membrane pre-tension, eliminating fabric flutter and ponding.
Radial Masts & Steel Columns
Heavy-gauge structural pipe sections engineered to resist lateral wind moments and vertical uplift under storm conditions.
Edge Cables & Welded Seams
Stainless steel boundary cables distribute tension evenly along membrane perimeters into corner anchor points.
Punjab Climate & Wind Engineering
Footings and membrane profiles calculated around Punjab monsoon winds, thunderstorms, and extreme summer heat cycles.
Where Tensile Structures Excel
Expansive, column-free covered environments engineered for commercial courtyards, dining terraces, and civic gathering grounds.

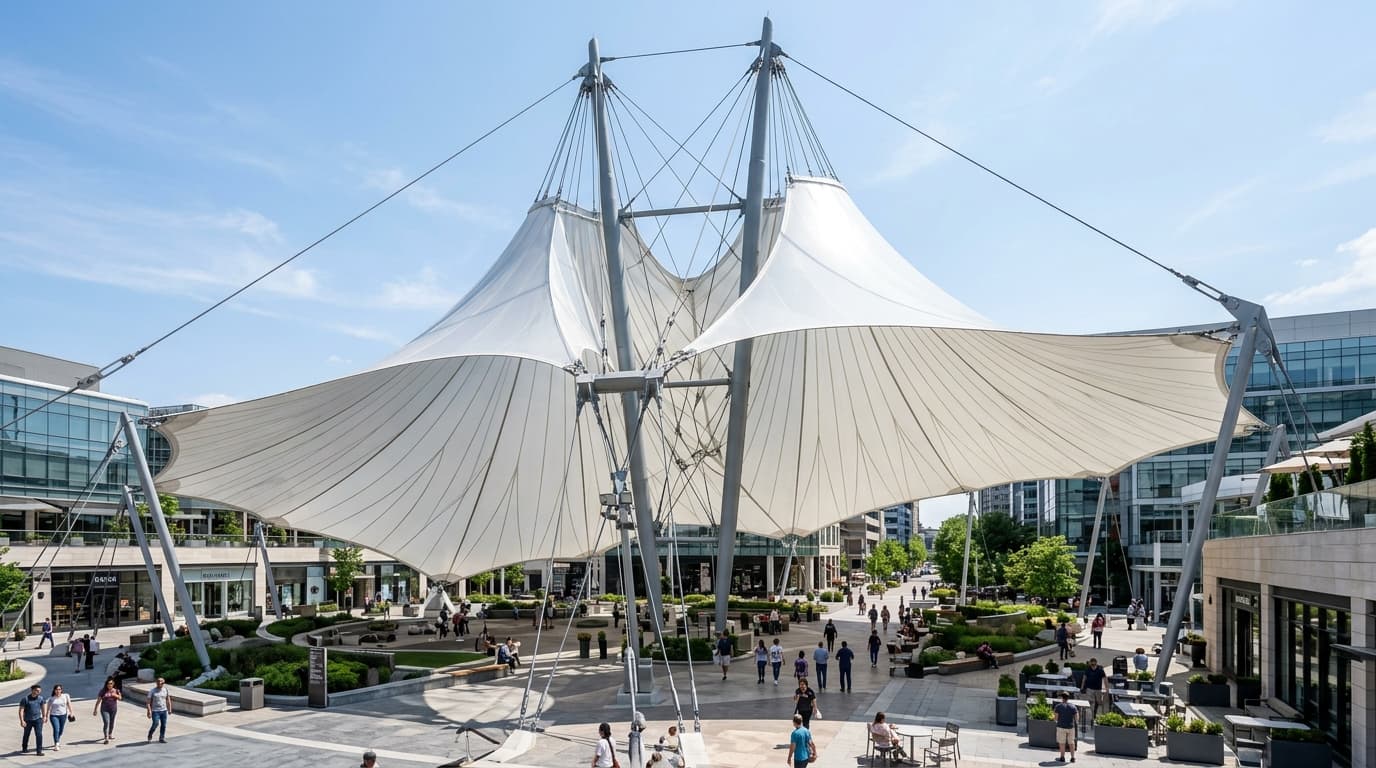

Commercial Courtyards & Plazas
Expansive column-free covered spaces creating iconic focal points for commercial foot traffic.

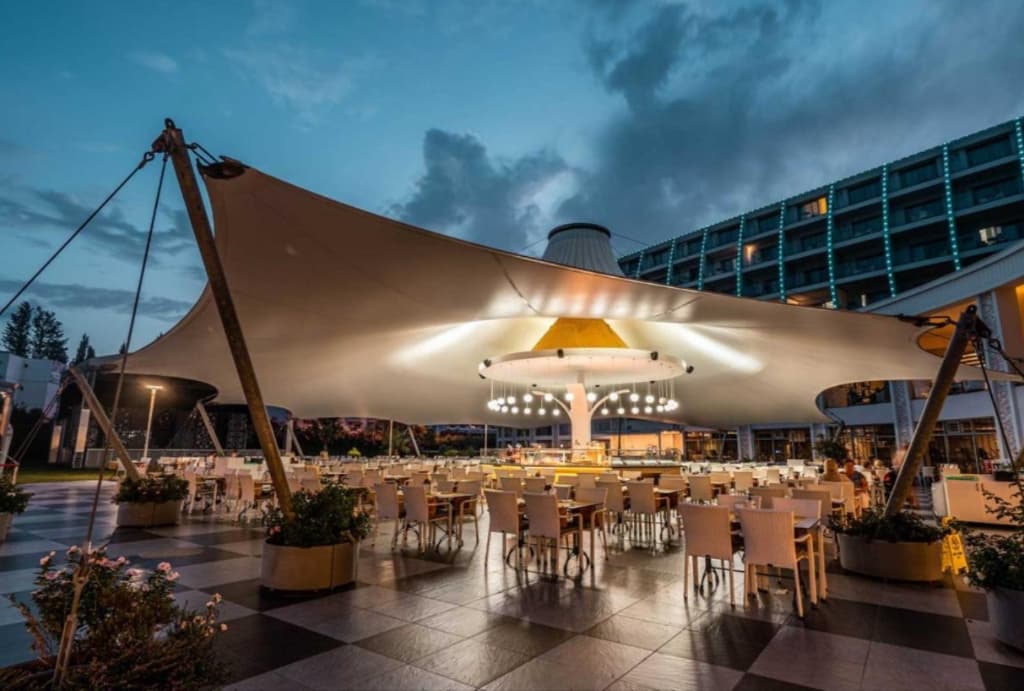

Outdoor Dining & Terraces
High-strength membrane canopies creating comfortable, climate-moderated dining environments.
Mosque & Institutional Grounds
Dignified high-capacity weather protection for large public congregations across Punjab.
University Campuses
Landmark outdoor assembly grounds and shaded study courtyards.
Event Stages & Amphitheaters
Acoustically favorable membrane roofs over performance stages.

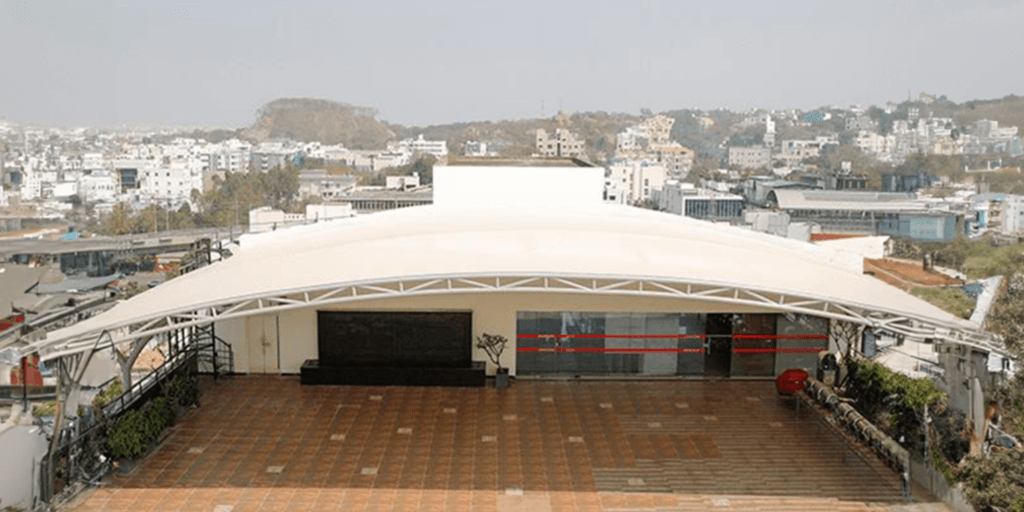

Rooftop Lounges
Lightweight structures converting exposed flat rooftops into shaded spaces.
Engineering & Form-Finding Principles
Tensile structures require meticulous tension equilibrium calculations. We calculate load paths and membrane geometry to ensure long-term stability under dynamic Punjab weather.

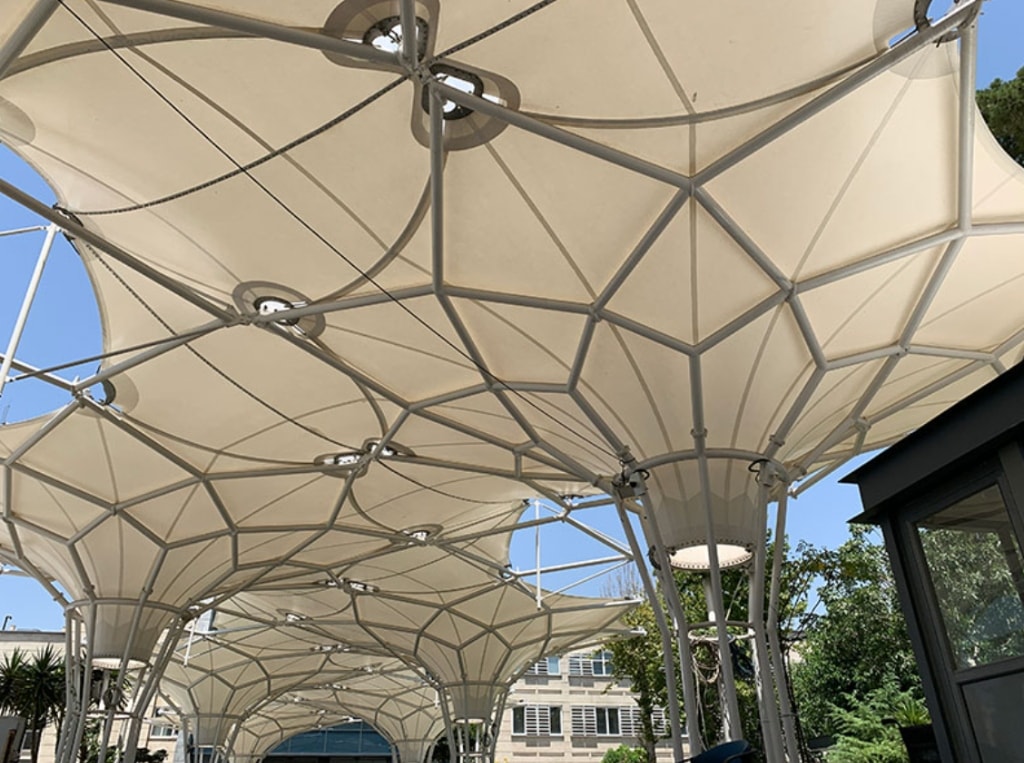

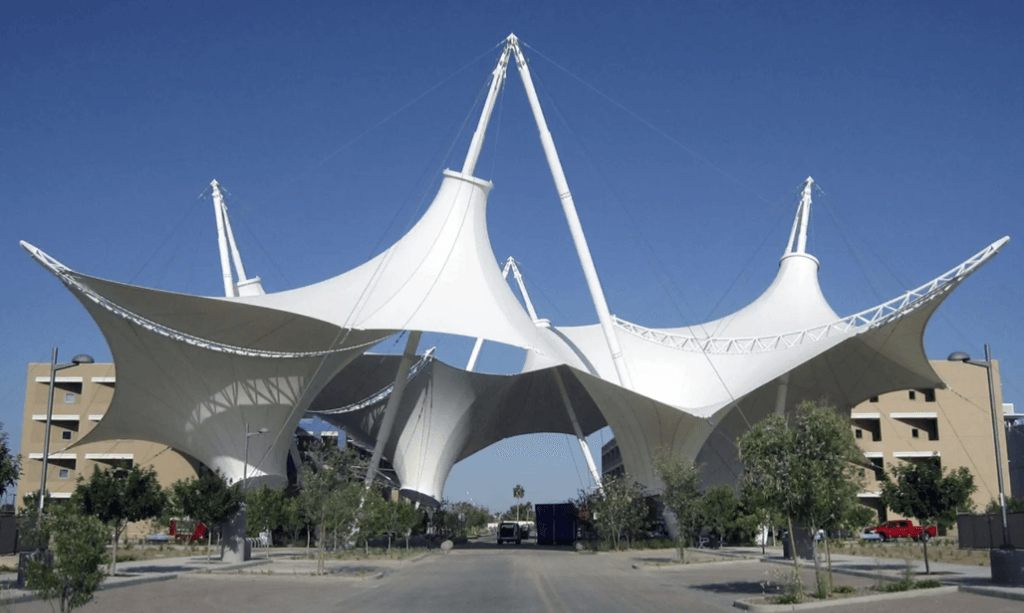

Conical & Umbrella
Central mast configurations with radial tension rings, shedding water rapidly and providing dramatic interior height.
Hypar & Saddle Sails
Opposing high and low anchor points producing elegant anticlastic curvature and natural perimeter water runoff.
Barrel Vault & Arch
Parallel curved steel trusses tensioning linear membranes, ideal for expansive rectangular spaces and walkways.
Bespoke Sculptural
Tailored multi-point tensioned geometry designed to accommodate non-standard plot boundaries and custom architectural concepts.
Tensile Structure Execution Workflow
From 3D form-finding analysis to calibrated biaxial tensioning on site, our methodology ensures structural safety.
Site Assessment
Laser measurements, clearance verification, soil checks, and wind/drainage feasibility analysis across Punjab.
Design & Planning
3D form-finding modeling, membrane tension calculations, and customized structural steel connection drawings.
Fabrication
Precision steel cutting, welding, protective anti-corrosion coating, and high-frequency membrane seaming in Lahore.
Installation
Structural mast anchoring, cable rigging, calibrated biaxial membrane tensioning, and quality sign-off.
Project-Dependent Material Selection
Membrane grades, steel mast thicknesses, cable diameters, and foundation anchor cages are selected on a project-by-project basis according to span, wind loads, and client requirements.

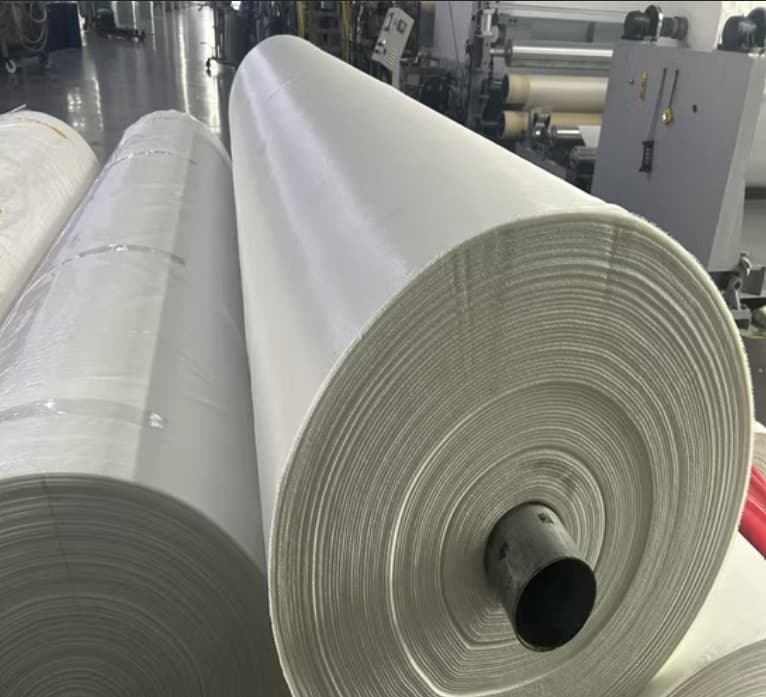

PVC / PVDF Fabrics
High tensile strength architectural fabrics offering UV resistance and self-cleaning lacquers.

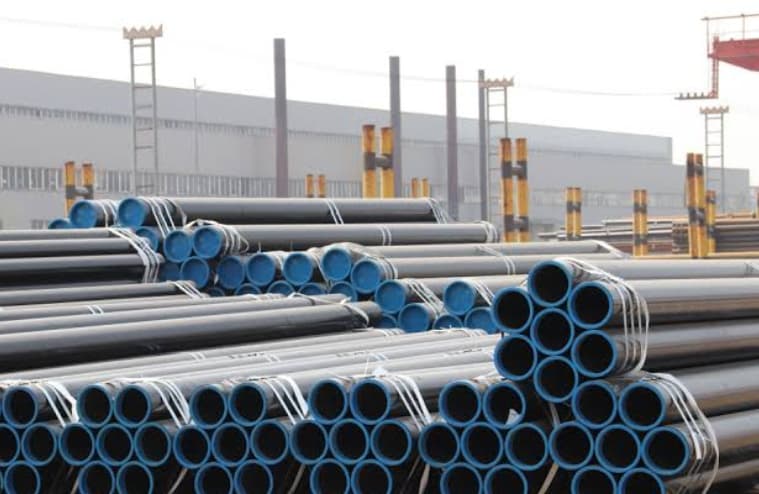

Structural Steel Pipe
Heavy-wall circular hollow sections with reinforced gussets and corrosion-resistant coatings.
Stainless Cables & Cleats
High-grade marine tension cables, forged turnbuckles, and corner shackle assemblies.
Engineered Anchor Cages
Cast-in-place high-grade concrete footings engineered to resist dynamic uplift forces.
Six Defensible Engineering Strengths
5 Years Practical Experience
Proven track record designing and erecting double-curvature tensile membrane structures across Punjab.
In-House Lahore Setup
Direct workshop control over steel cutting, plate welding, and membrane seaming ensures rigorous standards.
Free On-Site Measurements
We visit your site anywhere in Punjab without obligation to take exact laser measurements and check anchor readiness.
Project-Specific Engineering
No off-the-shelf compromises. Every canopy is calculated around site dimensions, wind vectors, and architectural goals.
Punjab-Wide Service Reach
Full engineering, fabrication, and installation support across Lahore, Faisalabad, Rawalpindi, Multan, and other cities.
Direct 24/7 Availability
Direct phone and WhatsApp technical support for commercial, institutional, and residential shade inquiries.
Serving Tensile Structure Projects Across Punjab
From Lahore, our engineering team provides on-site measurement, design planning, and professional installation support across Punjab:
Free on-site measurements and architectural consultations available for commercial and residential sites across Punjab.
Tensile Structure FAQs
Practical answers regarding tensile membrane durability, rainwater drainage, rooftop feasibility, and quotes across Punjab.
Our structural engineering team is available 24/7 for phone & WhatsApp consultations.
Ask on WhatsApp →A tensile structure is a lightweight architectural roof system that carries tension forces through a curved membrane surface supported by steel masts, perimeter cables, and heavy anchor foundations. This allows expansive covered spaces with very few or no interior support columns.
Planning a Tensile Structure Project in Punjab?
Schedule a free on-site survey anywhere in Punjab. Our team will evaluate your space, take laser measurements, and provide a clear quotation.
