Architectural Tension Membrane Structure
High-Tension Double-Curvature Tensile Canopy
A flagship architectural tension membrane structure designed and fabricated to deliver expansive, column-free covered space with striking visual geometry. Engineered specifically for Punjab's extreme seasonal temperature swings and monsoon storm conditions, this installation combines high-tensile architectural fabric with precision steel mast engineering.
- Location
- Lahore, Punjab
- Project Duration
- 3–4 Weeks (Engineering, Fabrication & Installation)
- Structure Type
- Double-Curvature Tensile Membrane
- Location
- Lahore, Punjab
- Membrane Material
- Premium Architectural PVDF Fabric
- Frame Material
- High-Strength Structural Steel with Anti-Rust Primer
Site Photography & Structural Details
Main double-curvature architectural membrane canopy installed in Punjab

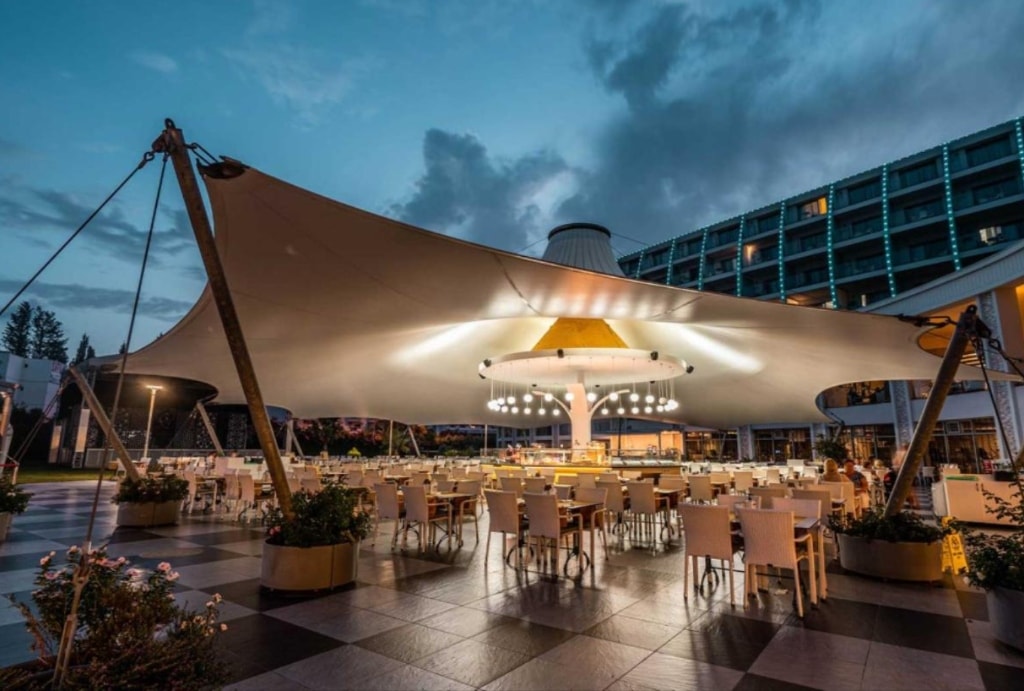

Expansive column-free open space with diffused natural ambient lighting
Structural steel mast perimeter rigging and turnbuckle anchor detail
Client & Site Challenge
The site demanded a high-clearance architectural shade solution capable of covering a large outdoor area without obstructing sightlines with intermediate vertical posts. The canopy needed to provide effective solar heat reduction during summer while withstanding intense monsoon wind uplift forces.
Delivered Scope of Work
- ✓Initial laser survey of site boundaries, orientation, and clearance points
- ✓3D form-finding and nonlinear wind load calculation modeling
- ✓In-house steel cutting, welding, and anti-corrosion primer coating in Lahore facility
- ✓Computer-controlled membrane cutting and high-frequency thermal seam welding
- ✓On-site foundation anchor cage installation and baseplate alignment
- ✓Steel mast hoisting, perimeter cable rigging, and calibrated hydraulic tensioning
Material & Engineering Specification
Heavy-duty architectural PVDF-coated tensile membrane with high tear strength and UV-lacquer finish, supported by high-grade structural steel masts and Grade-316 stainless steel cable rigging turnbuckles.
The double-curvature hyperbolic paraboloid geometry was generated through parametric 3D form-finding software to guarantee uniform pre-tension distribution and prevent rainwater ponding during heavy Punjab downpours.
Installation & Work Process
Reinforced concrete pad footings cast with precision-aligned high-tensile anchor bolts
Steel masts hoisted into place using mobile cranes and secured to foundation baseplates
High-strength perimeter boundary cables threaded through reinforced membrane pockets
Gradual multi-point hydraulic tensioning to achieve specified structural membrane stress
Engineering Challenges Solved
Working within a restricted site footprint with nearby existing buildings required off-site modular fabrication in our Lahore workshop, allowing rapid crane assembly and zero hot-work welding near finished facades.
GM Tensile Concepts Expertise Applied
Advanced 3D membrane form-finding, precision in-house steel fabrication, and calibrated tensioning techniques developed over 5+ years of tensile installations across Punjab.
Project Outcome
A striking architectural landmark providing 100% weather protection, up to 15°C temperature reduction beneath the canopy, and long-term durability with minimal maintenance requirements.
| Structure Type | Double-Curvature Tensile Membrane |
| Location | Lahore, Punjab |
| Membrane Material | Premium Architectural PVDF Fabric |
| Frame Material | High-Strength Structural Steel with Anti-Rust Primer |
| Hardware | Marine Grade 316 Stainless Steel Cables & Rigging |
| Project Duration | 3–4 Weeks Total |
| Engineering Scope | Design, Fabrication & Turnkey Installation |
