Precision Tension Hardware & Cable Rigging System
Structural Cable Nodes & Membrane Boundary Detail
Precision engineering and component fabrication of high-load structural connection nodes, perimeter wire rope assemblies, and stainless steel turnbuckles that maintain calibrated membrane tension under extreme wind forces.
- Location
- Fabrication Facility & Punjab Project Sites
- Project Duration
- Integrated with Project Schedule
- Component Type
- Tension Rigging & Node Hardware System
- Hardware Grade
- Marine Grade 316 Stainless Steel
- Connection Plates
- CNC Laser-Cut High-Strength Steel
- Fabrication
- In-House Precision Workshop, Lahore
Site Photography & Structural Details
Marine Grade 316 stainless steel turnbuckle rigging and perimeter cable connection
Precision-welded steel mast connection node with anti-corrosion primer coating
High-frequency thermal welded seam with reinforced boundary keder border
Client & Site Challenge
Architectural tension membrane structures require certified, rust-proof hardware engineered to withstand dynamic wind gusts and thermal expansion without loss of pre-stress.
Delivered Scope of Work
- ✓Structural load testing and node stress concentration analysis
- ✓CNC machining and plasma cutting of connection gusset plates
- ✓Swaging and testing of high-strength stainless steel perimeter wire ropes
- ✓Calibration of high-load stainless turnbuckles and clevis pins
- ✓Quality inspection of high-frequency thermal welded membrane seams
Material & Engineering Specification
Marine Grade 316 stainless steel turnbuckles, wire ropes, and fork terminals combined with laser-cut heavy structural steel connection plates.
Machined smooth radius corners on all clamp bars and corner plates eliminate point-stress concentrations and prevent membrane tearing during high winds.
Installation & Work Process
Rigging perimeter wire ropes through fabric edge sleeves in workshop
Attaching corner clevis brackets to mast connection lugs
Applying calibrated torque to turnbuckles with tension gauges
Final lock-nut tightening and weather-sealing of connection points
Engineering Challenges Solved
Preventing localized stress risers at membrane corner plates. Solved with articulated multi-axis swivel fittings that adapt to live wind movement.
GM Tensile Concepts Expertise Applied
Precision CNC machining, stainless rigging specification, and tension calibration engineering.
Project Outcome
Rock-solid structural integrity with sleek architectural cable lines and prolonged tensile membrane operating lifespan.
| Component Type | Tension Rigging & Node Hardware System |
| Hardware Grade | Marine Grade 316 Stainless Steel |
| Connection Plates | CNC Laser-Cut High-Strength Steel |
| Fabrication | In-House Precision Workshop, Lahore |
| Quality Standard | Nonlinear Wind Stress Certified |
Explore More Projects

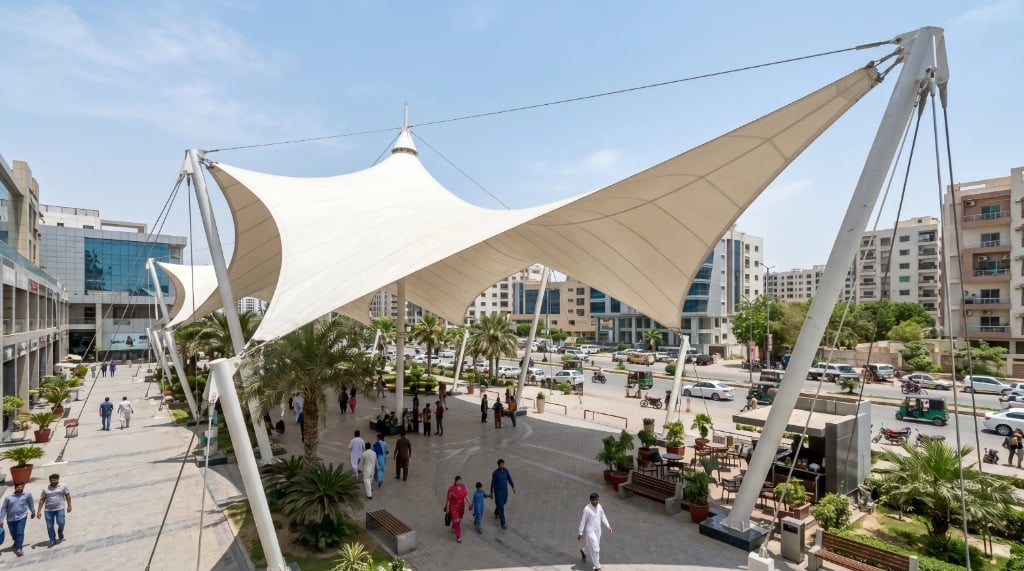

Architectural Tension Membrane Structure
High-tension double-curvature membrane canopy engineered for expansive column-free shade coverage and weather resistance.

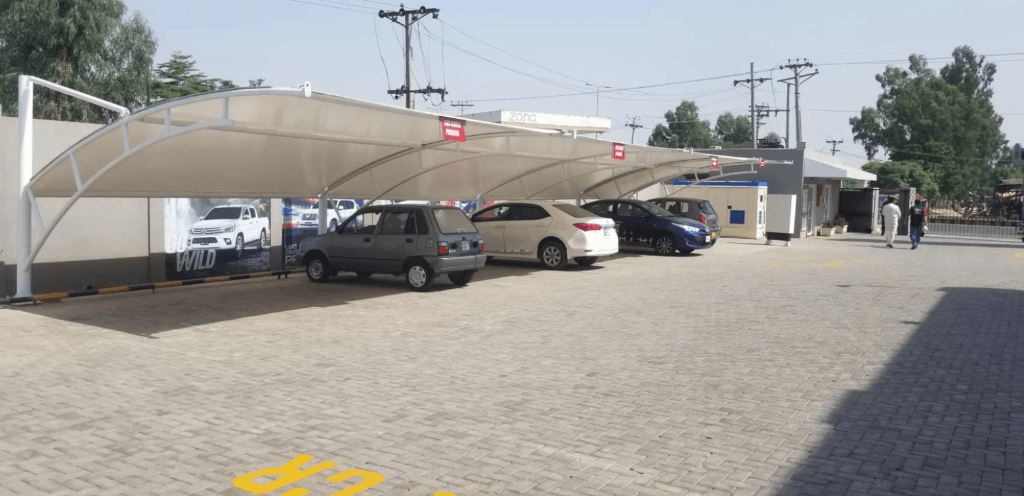

Cantilevered Vehicle Parking Shade System
Single-side cantilevered shade structure providing vehicle UV protection without front post obstruction.

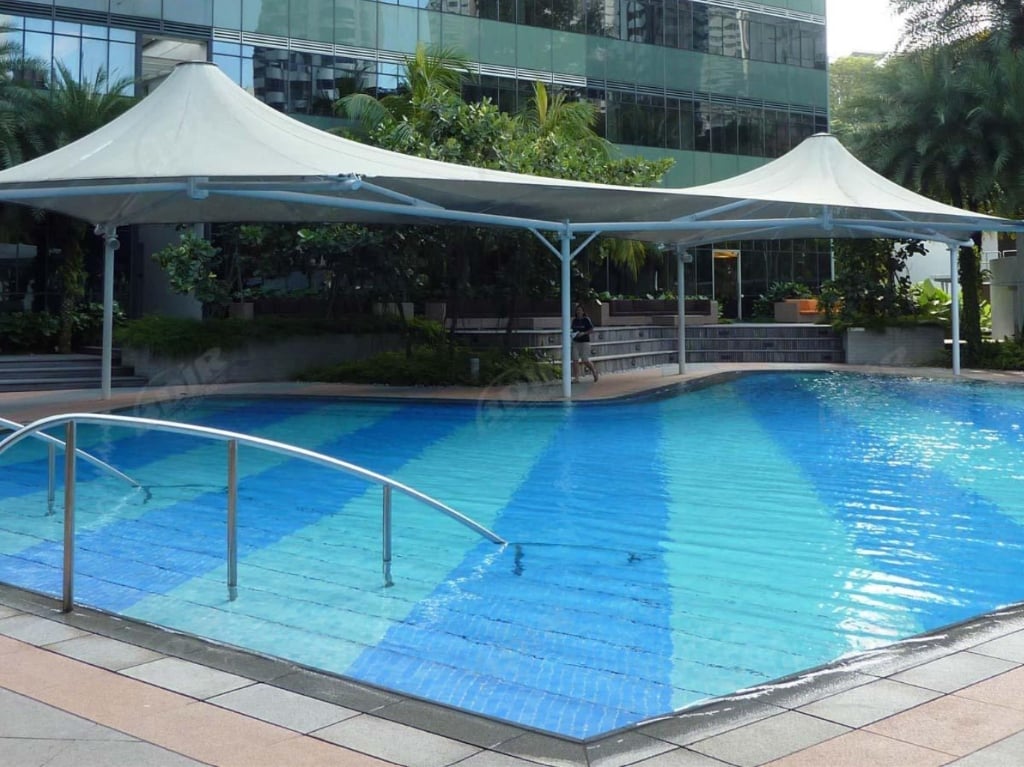

Poolside Tensile Shade Canopy & Arch Structure
